SKI-DOO ADRENALINE | 2.0 FACTORY RACE SERIES
FOX Quick Switch (QS) coil shocks for trail/crossover applications provide the same performance advantage FOX is known for in the backcountry now. Ride harder with less fatigue without a compromise of durability. Experience a new sense of control on the snow due to velocity and position-sensitive damping technology.

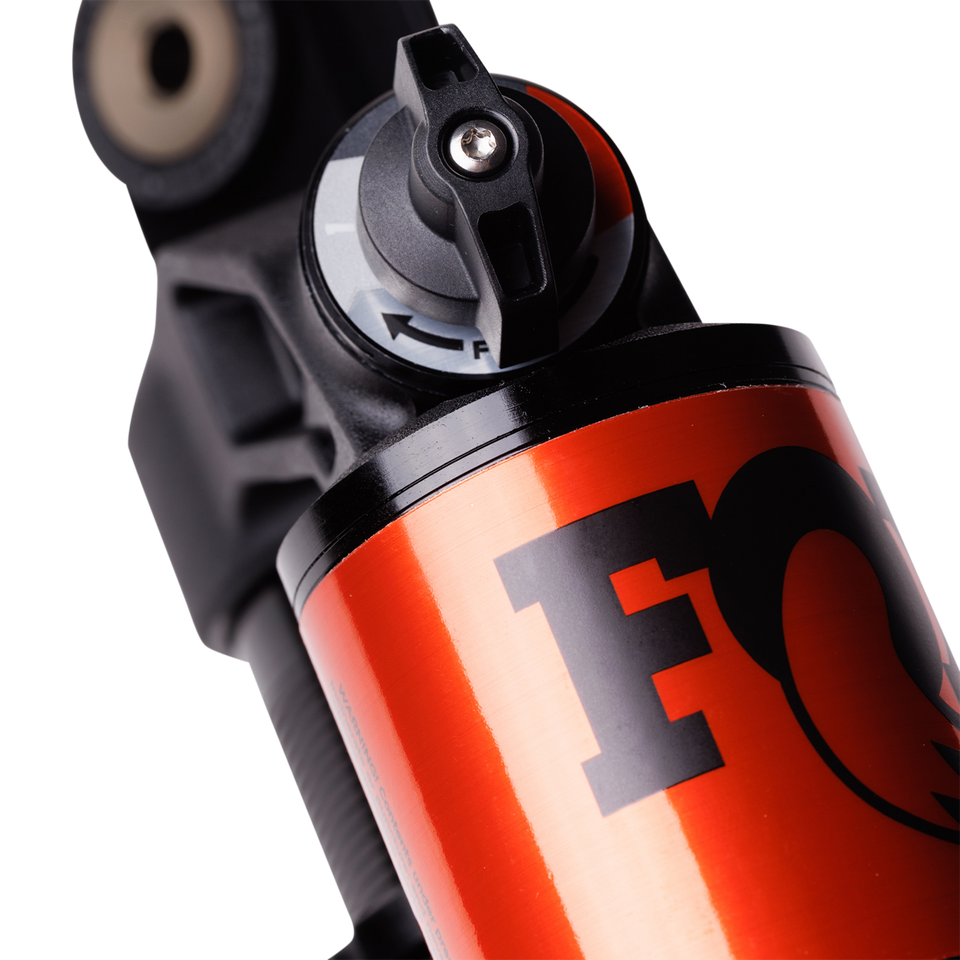

Quickly adjust the compression damping with FOX's QS3 to suit snow conditions. Three positions keep the gloves on and the adjustment simple. Focus on riding instead of counting clicks.
FOX's position-sensitive damping technology, Rifle Bore, is now applied to the Factory Race Series rear track shock. Spiral grooves inside the shock allow the oil to flow around the main piston, reducing the damping force in the ride zone for a plush feel. The grooves terminate through the final 30% of the travel, forcing oil to flow through the main piston. The result is a significant increase in bottom-out resistance to cushion hard hits.
Maximize your sled performance by bolting on FOX's new trail/crossover shocks equipped with Rifle Bore position-sensitive technology and QS3 adjustment.
| PART NUMBER | 850-04-007 |
| FEATURES |
Optimized lightweight spring & shock design FOX ice scraper technology (FIST) One-piece, aluminum mounting hardware High-flow velocity-sensitive damping Rifle Bore technology (Rear track shock only) Fully rebuildable and re-tunable Internal floating piston (IFP) |
| SERIES | Factory Race |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| PART NUMBER | 850-04-007 |
| FEATURES |
Optimized lightweight spring & shock design FOX ice scraper technology (FIST) One-piece, aluminum mounting hardware High-flow velocity-sensitive damping Rifle Bore technology (Rear track shock only) Fully rebuildable and re-tunable Internal floating piston (IFP) |
| SERIES | Factory Race |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
850-04-007 Passt auch
| Jahr | Machen | Modell | Untermodell | Laufwerkstyp | Kraftstoffart | Body Num Türen | Typ | Position | Hubhöhe | Ausstattungsübersicht im Detail | Preis | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2023 | Ski-Doo | Backcountry E-TEC 850 | * | * | * | * | 48166 | Shock Absorber Kit | EA | Front | 22 | €1.399,99 | |
| 2026 | Ski-Doo | Backcountry Adrenaline E-TEC 850 39in. | * | * | * | * | 48166 | Shock Absorber Kit | EA | Front | 22 | Ski | €1.399,99 |
| 2025 | Ski-Doo | Backcountry Adrenaline E-TEC 850 | * | * | * | * | 48166 | Shock Absorber Kit | EA | Front | 22 | €1.399,99 | |
| 2024 | Ski-Doo | Backcountry X-RS E-TEC 850 146 | * | * | * | * | 48166 | Shock Absorber Kit | EA | Front | 22 | €1.399,99 |
